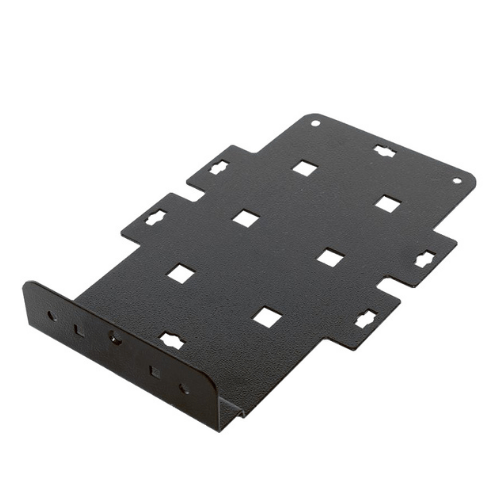

Titan Universal Bed Mount – Quick Overview

The Titan Universal Bed Mount provides a secure and versatile way to install your Titan Gun Safe to a wood or metal bed frame railing. It can also be used for in-vehicle installations, allowing the safe to be mounted upright or on its side for flexible placement and fast access.

Installation & Mounting Details

The Universal Bed Mount can be configured in 16 different mounting directions for maximum adaptability.

To attach the safe:

1. Select your desired orientation.

2. Insert the lock arm into the slot.

3. Rotate 90° to secure the safe to the mounting bracket.

Once the safe lid is closed and locked, it cannot be removed from the bracket. Always verify proper installation before use.

Bed Frame Installation

• Position the clamp facing the mattress as shown in the product diagrams.

• We recommend drilling Ø 3/16" pilot holes.

• Use #10-24 x 1/2” sheet metal self-tapping screws (lightly lubricate screws and do not use power screwdrivers).

• Trim excess hardware before repositioning the bed.

• Steel rivets may also be used for additional reinforcement.

In-Vehicle Installation

The Universal Mount can be used inside vehicles for secure upright or side-mounted installation. Always fasten to a solid structural surface.

Wall Installation

• Use a stud locator to identify wall studs.

• Secure mounting brackets directly into the stud at structural intersections.

• Use at least four mounting holes for maximum holding strength.

• Screw anchors may be used where appropriate.

Floor Installation

Included hardware:

• Carriage bolts

• Lag screws

• Sheet metal screws (where applicable)

⚠️ Security Recommendation:
Always secure the Universal Mount to a permanent structural object to help prevent theft.

Designed for strength, versatility, and secure firearm storage, the Titan Universal Bed Mount ensures reliable installation wherever you need fast, dependable access.
